Critical Points Construction Companies Must Consider in Stadium Projects

1️⃣ Master Planning and Integrated Design

The biggest mistake in stadium projects is separating structural construction from technological infrastructure planning.

Critical Considerations:

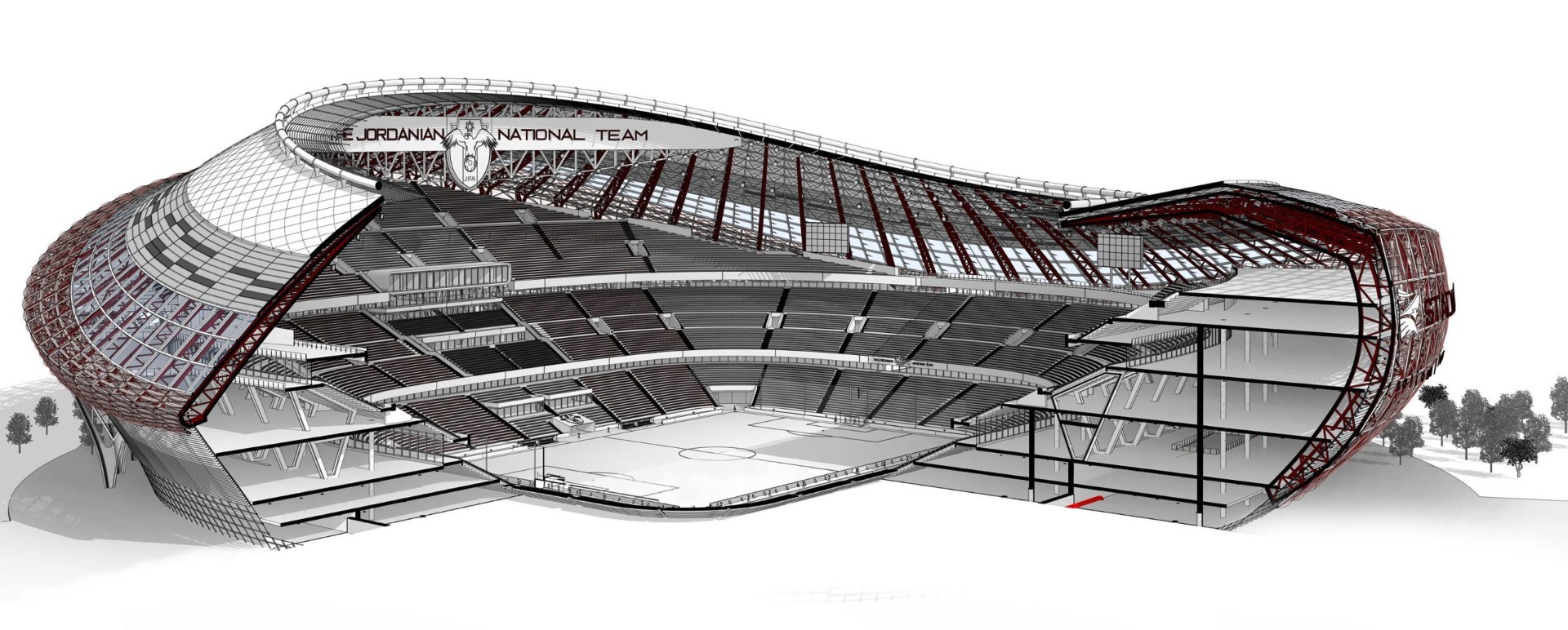

• BIM (Building Information Modeling) integration

• Including LED scoreboard and media systems in roof load calculations

• Reserving structural space for broadcast platforms

• Field-level planning for LED perimeter installations

Important: Revisions after concrete completion significantly increase costs. Technology infrastructure must be planned in the initial phase.

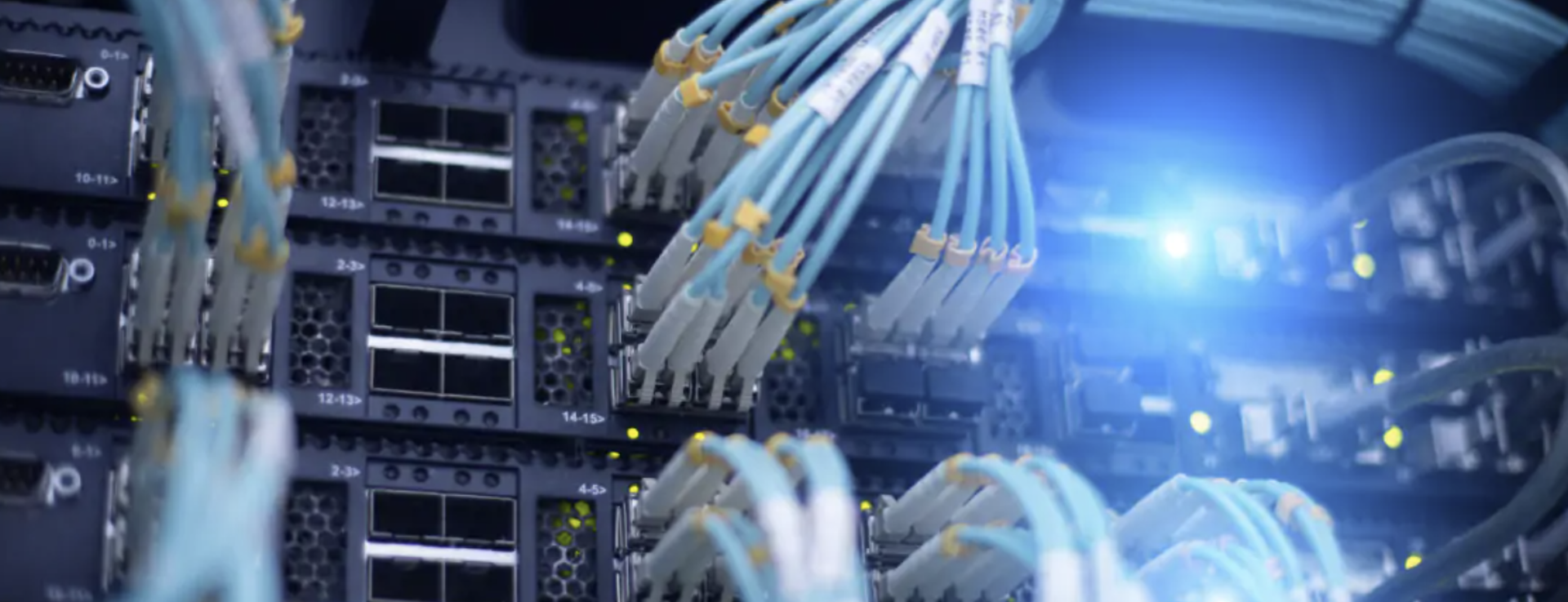

2️⃣ Digital Infrastructure and Fiber Backbone

A modern stadium is essentially a large data center.

Key Points:

• Fiber ring topology between field and control room

• Redundant network planning

• Separate VLAN architecture for broadcast, VAR, LED, turnstiles, and CCTV systems

• Proper cooling for rack rooms

A scenario test must simulate 50,000 spectators using data simultaneously at full capacity.

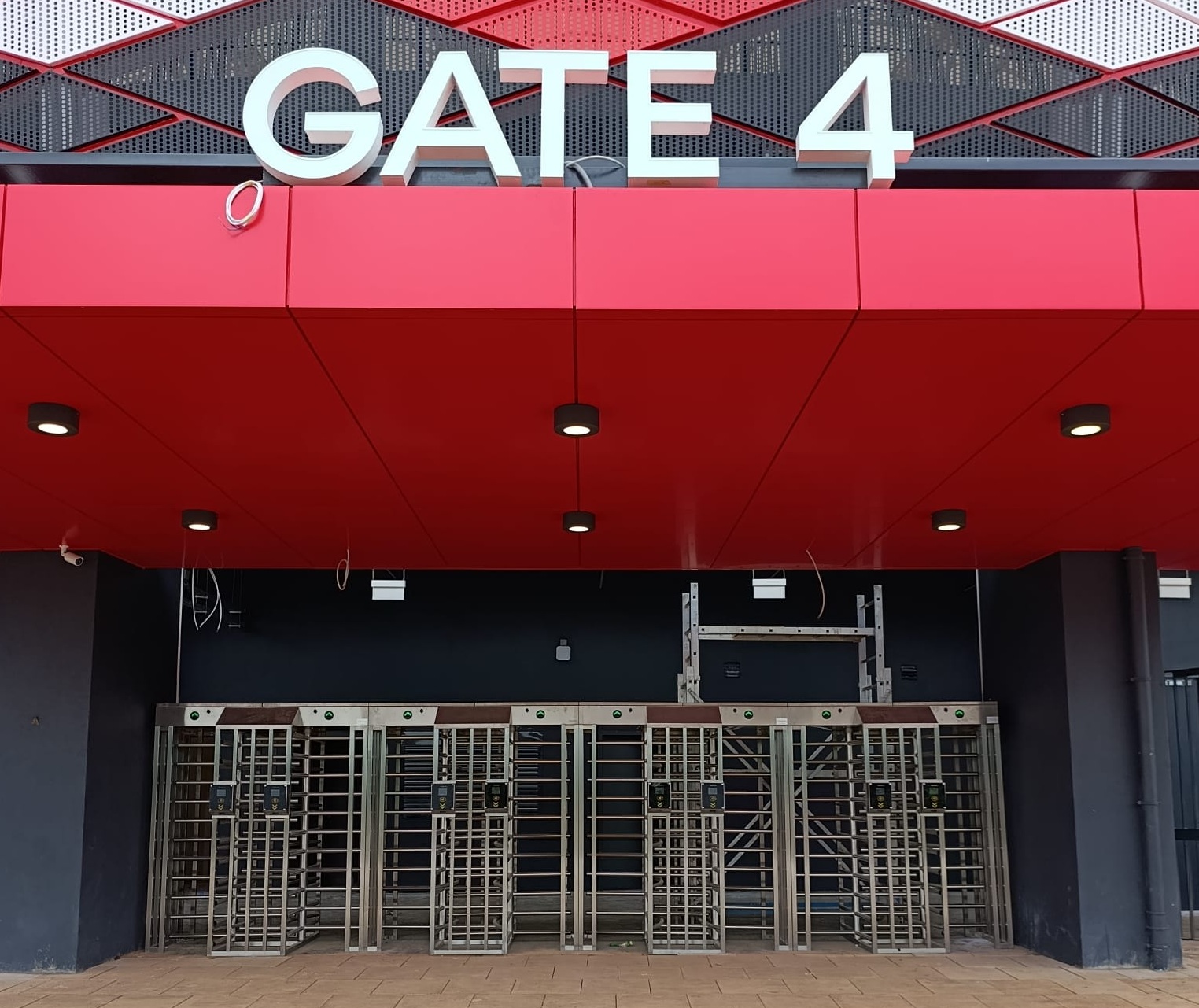

3️⃣ Security and Access Control

Stadium security is not just a policing matter; it is an architectural concern.

Critical Points:

• Evacuation scenarios in turnstile positioning

• Camera angle planning for facial recognition systems

• CCTV blind spot analysis

• Separation of VIP and team entrances

UEFA and FIFA criteria clearly define the number of spectators per entrance. These calculations must be addressed during the architectural phase.

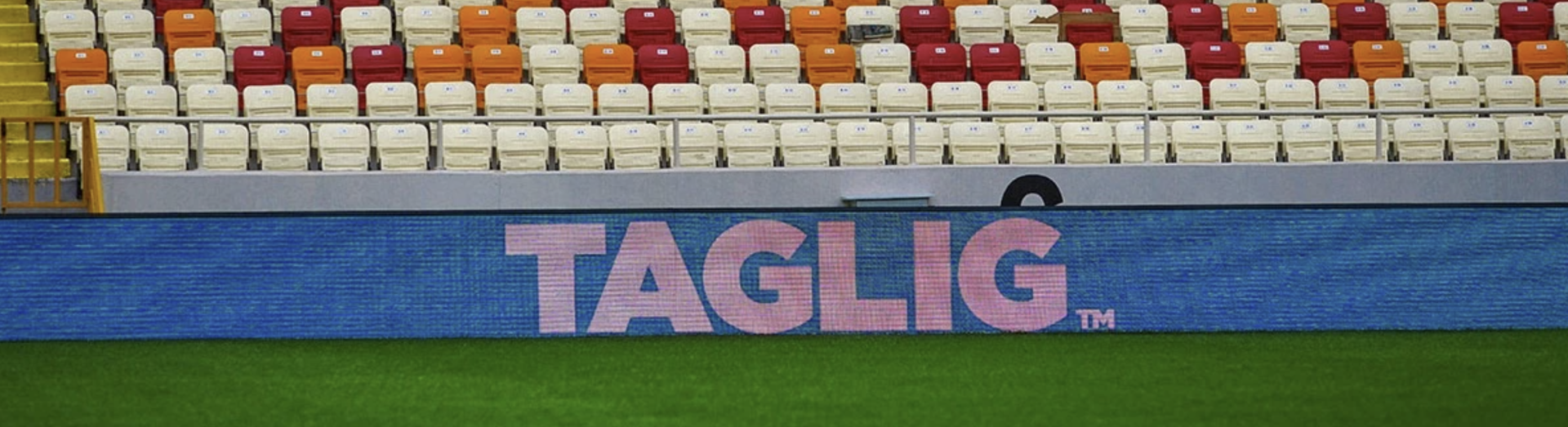

4️⃣ LED Perimeter and Scoreboard Integration

Today, LED systems are a primary driver of revenue models.

Warnings for Construction Firms:

• Proper anchoring infrastructure for perimeter lines

• Roof structural analysis for scoreboard loads

• Dedicated power distribution lines

• Maintenance access platforms

LED systems must never be treated as "install later" components.

5️⃣ Broadcast Infrastructure

Stadiums lacking sufficient broadcast infrastructure cannot receive approval for international events.

Must Be Planned:

• Camera platform elevation and angles

• OB Van parking zones

• Fiber broadcast patch panels

• Press tribune data infrastructure

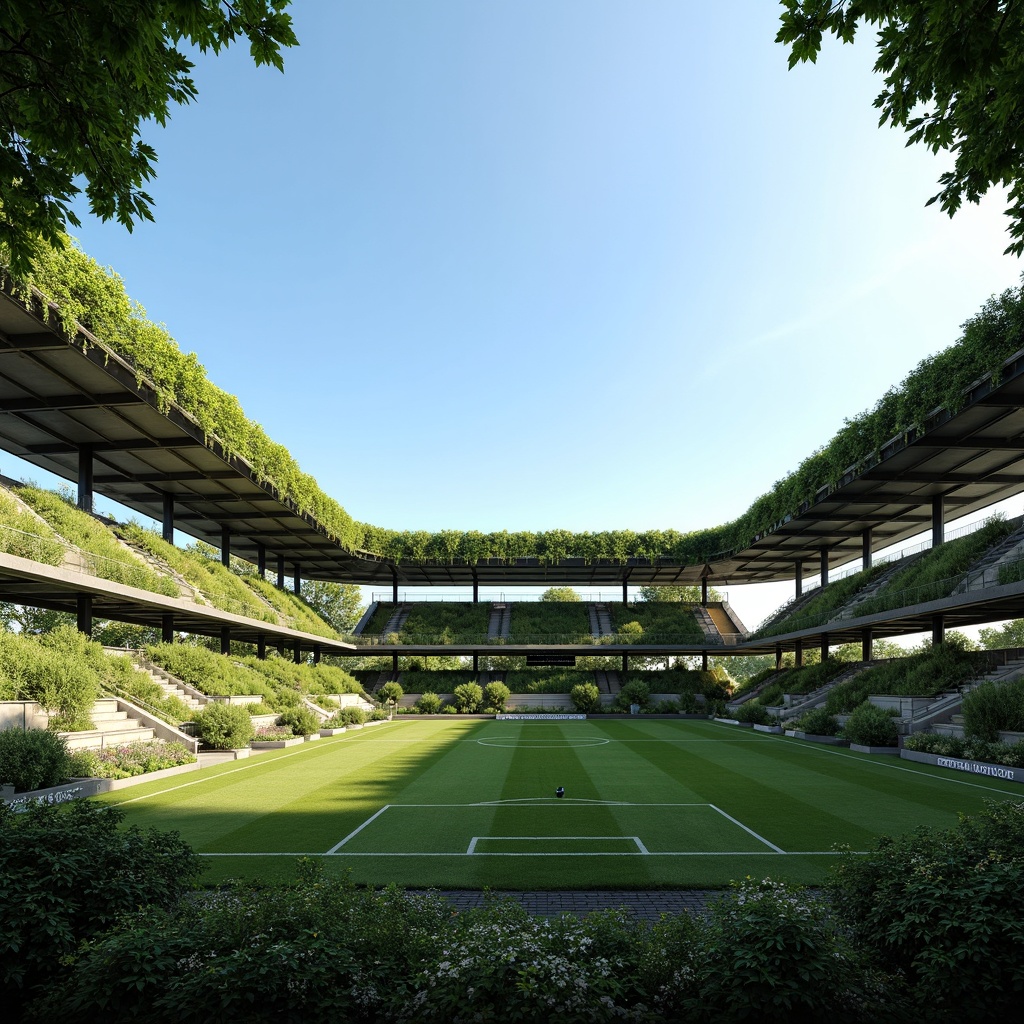

6️⃣ Sustainability and Energy Management

Next-generation stadiums are designed with carbon footprint optimization in mind.

Key Focus Areas:

• Rooftop solar panels

• LED lighting systems

• Rainwater harvesting

• Smart energy monitoring systems

The 2030 sustainability framework of UEFA serves as a guiding benchmark in this area.

7️⃣ 100% Capacity Scenario Testing

The true success of a stadium is measured not at low occupancy, but at maximum capacity performance.

Construction firms must test:

• Simultaneous turnstile throughput

• Peak electrical load analysis

• Evacuation time simulations

• Data traffic stress testing

Conclusion: Concrete + Data + Security + Revenue Model

idCodeX Difference: Designed for Full Capacity

idCodeX Technology Solutions takes a fundamentally different approach from conventional system integration models.

Many projects are designed for low-occupancy scenarios.
However, the real test day is derby day, a continental final, or an international tournament night.

The idCodeX design principle is clear:

🔹 Systems must perform flawlessly not at low occupancy, but at 100% capacity.

This philosophy creates tangible advantages:

• Redundant fiber backbone architecture

• Power distribution planned for peak load conditions

• Access design based on turnstile density analysis

• Synchronized LED & broadcast control infrastructure

• Centralized integrated control room architecture

idCodeX does not treat a stadium as a collection of separate systems,
but as a single, living digital ecosystem.

Smart . Secure . Efficient .

The true value of a stadium is not measured by concrete thickness,
but by its ability to remain operational under peak pressure.

And that resilience is built through proper integration.
